Well Completion
Dissolvable Bridge Plug
Magnesium alloy bridge plugs for temporary zonal isolation, controlled dissolution, and full-bore recovery without milling.
Product configuration

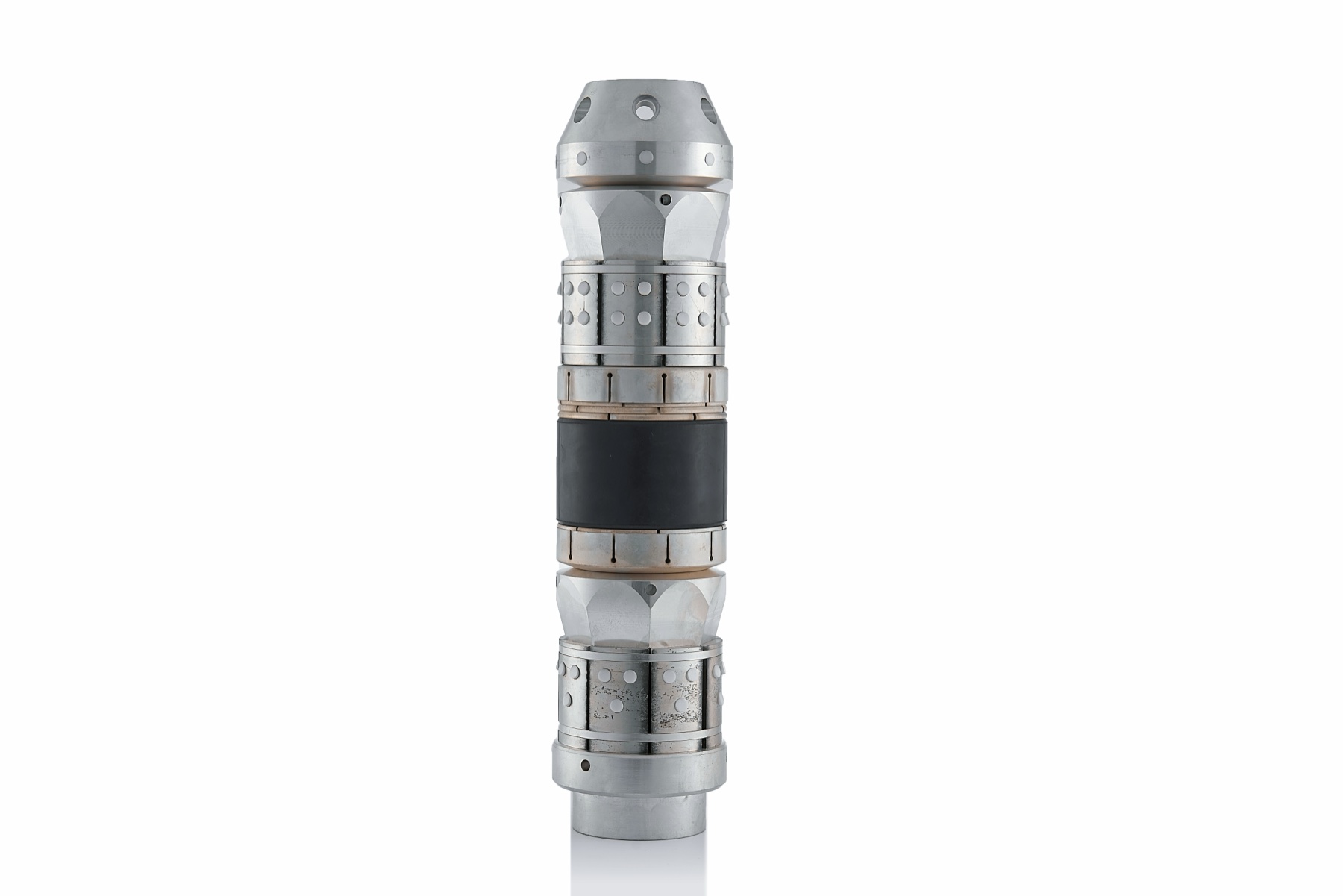

Representative tool architecture
The photographed tool shows one available configuration. Final geometry, material route, sealing architecture, pressure rating, and dissolution window are selected for the completion program.
- Quotation inputs
- Casing, pressure, temperature, fluid chemistry, setting method
- Configuration status
- Selected and documented per application
Overview
Dissolvable bridge plugs provide reliable temporary zonal isolation for well completion, pressure testing, cementing, and intervention operations while eliminating conventional drill-out. Magnesium-alloy composition and tool configuration are selected for the target temperature, fluid chemistry, and isolation window. Frac-plug and bridge-plug terminology can overlap in the market; this page focuses on bridge-plug and temporary-isolation applications.
Key Features
- Controlled-dissolution magnesium alloy selected for the well environment
- Temporary zonal isolation without drill-out operations
- Available configurations rated up to 70 MPa (approximately 10,000 psi)
- Operating envelope from 30°C to 150°C, depending on configuration
- Single-slip, double-slip elastomer-sealed, and all-metal architecture routes
- Representative casing programs include 4-1/2", 5", and 5-1/2"
- Dissolution window confirmed against the actual temperature and fluid chemistry
Technical Specifications
| Body Material | Controlled-dissolution magnesium alloy; chemistry selected by application |
| Pressure Rating | Up to 70 MPa (approximately 10,000 psi), configuration dependent |
| Temperature Envelope | Available configurations: 30°C–150°C (86°F–302°F) |
| Dissolution Window | All-metal reference configuration: 5–30 days; other profiles require application review |
| Typical Casing Programs | 4-1/2", 5", and 5-1/2"; other programs require engineering review |
| Representative OD | 90 mm, 94 mm, or 112 mm for the double-slip range |
| Setting Interface | BK10, BK20, or project-specific interface depending on configuration |
Available Materials
Applicable Standards
- API 11D1 / ISO 14310 test requirements available for project-specific review
- Inspection and material documentation defined at quotation
Applications
- Temporary zonal isolation
- Pressure testing
- Cementing operations
- Temporary abandonment and workover
- Multi-zone well interventions
